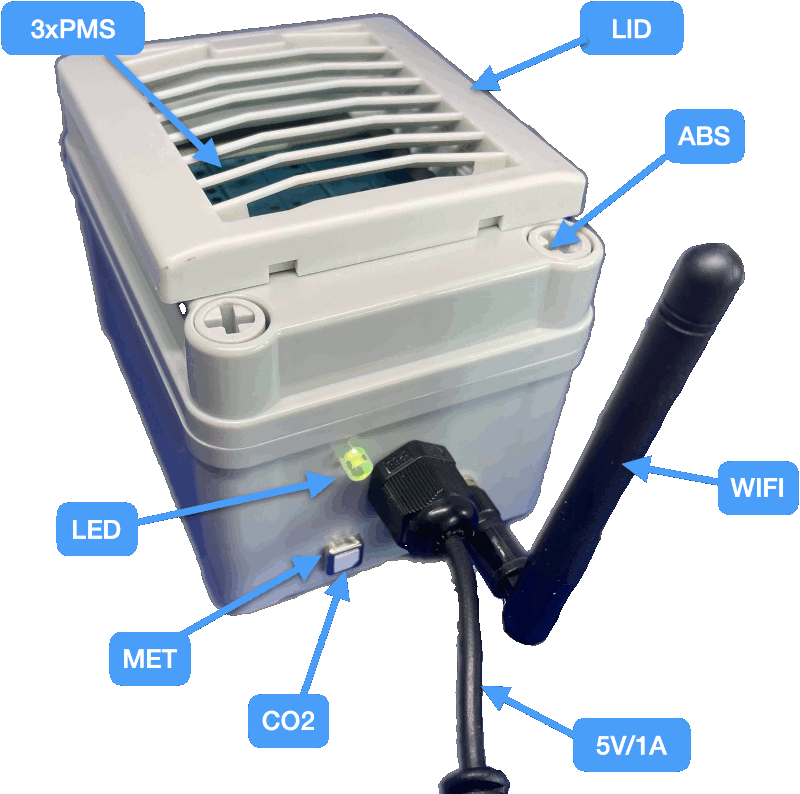

The GAIA Air Quality Monitoring Stations are specially optimized, highly accurate, and easy-to-use monitoring stations designed by the Earth Sensing labs. The stations are suitable for affordable an budget - as low as 100 USD per year for the most recommended A12 station.
| Sensors | Particle Matter (PM) Sensor | PM2.5, PM10 and PM1.0 |
| Redundant PM Sensors | Yes (x3) | |
| Weather Sensor | Temperature and Humidity | |
| Visual Indicators | RGB LED | yes |
| Connectivity | WIFI | yes (2.4G) |
| External Antenna | yes, 3dB | |
| Power Suppply | Power Supply | yes, using standard USB 5V DC |
| Power cable | 10 meters (33 feet) water proof cable | |
| Data Storage & Broadcast | Publication | yes, broadcasted on aqicn.org and waqi.info |
| Historical Data | yes, accessible via website or API | |
| SD-Card storage | optional, for extra 50USD | |
| Maintenance | Anomaly Detection | yes |
| Remote Maintenance | yes | |
| Pricing | Product Cost | One-time payment: 200USD or Yearly: 100USD + deposit: 50USD |
The GAIA A18 is an improved GAIA A12 design, with solar panel power and long-distance radio, allowing the station to operate in areas where either power supply or WiFi connectivity is unavailable.
The GAIA A18 can operate using the battery for seven days without a recharge. The solar panel battery can recharge the battery within a few hours under direct sun conditions. Using both the solar panel and the battery, it is possible to operate the station forever off-grid, provided you have at least one sunny day every week.
The GAIA A18 can operate using WIFI like the GAIA A12. But it also comes with "long-range" connectivity support (LoRA), allowing you to locate your station several hundreds of meters up to several kilometres from your network gateway (depending on the line of sight). The GAIA A18 comes with an external WIFI/LoRA gateway.
The GAIA A18 also contains an internal GPS sensor to make it easier to locate your remote stations.
The GAIA A18 with both solar panel+battery and LoRa features connectivity costs .
It is also possible to get the A18 with only one feature (either Solar or LoRa) for :
| Product version | GAIA A18 Solar+LoRa | GAIA A18 Solar | GAIA A18 LoRa | GAIA A12 |
| Network Connectivity | LoRa + WiFi | WiFi | LoRa + WiFi | WiFi |
| Power Supply | Battery + Solar Panel | Battery + Solar Panel | Power Outlet | Power Outlet |
| Accessories | Solar Panel 5m power cable LoRa gateway | Solar Panel 5m power cable | 10m power cable LoRa gateway | 10m power cable |
| Cost |
Fill in the form below and we will send you back a quotation including the shipment cost.
Frequently Asked Questions:
Mounting with strips
| (vehicles per day) | |
|---|---|
| ≤1,000 | 10 |
| 10,000 | 10 |
| 15,000 | 20 |
| 20,000 | 30 |
| 40,000 | 50 |
| 70,000 | 100 |
| ≥110,000 | 250 |
For official stations, there are two more requirements, with the intent is to locate the station on sites representative of the ambient air quality levels (reference).
